This system combines high-end, nearby fluoroscopy and digital radiography into one DRF unit , designed to broaden clinical capacity and increase room utilization.
Door op de link te klikken, verlaat u de officiële website van Royal Philips ("Philips"). Alle links naar websites van derden die op deze site kunnen verschijnen, zijn alleen bedoeld voor uw gemak en vertegenwoordigen op geen enkele manier enige aansluiting bij of goedkeuring van de informatie die op die gelinkte websites wordt verstrekt. Philips geeft geen verklaringen of garanties van welke aard dan ook met betrekking tot websites van derden of de daarin opgenomen informatie.
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Cost effective
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Cost effective
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Superb image quality
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Intuitive
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Dose management
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Bariatrics
Bariatrics

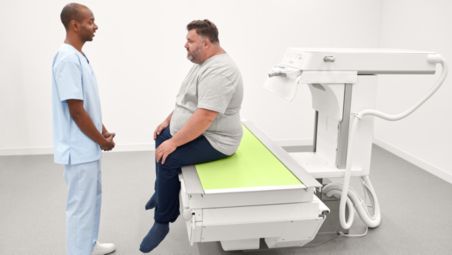

Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Cost effective
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Cost effective
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Facilitate high room utilization with the ability to
perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Superb image quality
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Superb image quality
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Intuitive
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Intuitive
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Dose management
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Dose management
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Bariatrics
Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
Technische specificaties
Table Geometry
Table Geometry
Weight capacity Static
300 kg (660 lbs)
Weight capacity Tilting
250 kg (550 lbs)
Weight capacity All movements
185 kg (407 lbs)
Footrest weight capacity
250 kg (550 lbs)
Table tilt angle
+90° – -20°, optional -30°/-45°/-85°
Tabletop
200 cm x 80 cm (78.7" x 31.5")
Tabletop to detector housing clearance
25 – 60 cm (9.8" – 23.6")
Tabletop height
83.3 cm (32.8")
Detector for table Bucky
Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17") or cassette
Dynamic Flat Detector
Dynamic Flat Detector
Type
Cesium Iodide (CsI)
Detector size
43 cm x 43 cm (17" x 17")
Active area
42 cm x 42.5 cm (16.5" x 16.7")
Pixel size
148 μm
Image matrix size
2880 pixel x 2881 pixel
Acquisition mode continuous fluoroscopy
Up to 30 fps
Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
0.5 – 30 fps
Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
