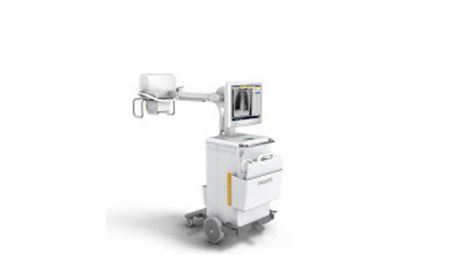

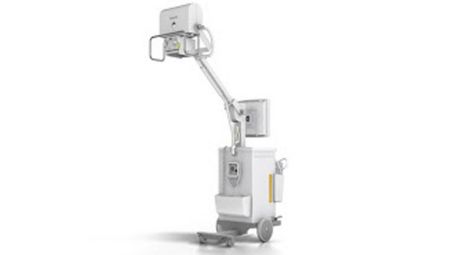

MobileDiagnost Opta

Technische specificaties

Detector

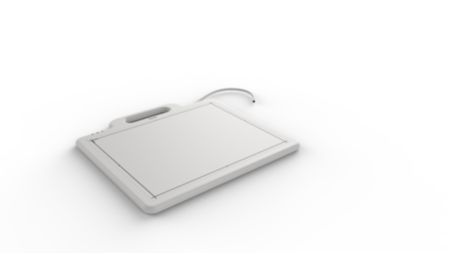

Detector

Type	Digital tethered flat detector
Scintillator	High stability scintillator
Pixel size	150 µm
Detector size	35 cm x 43 cm (approx. 14” x 17”)
Active area	34.3 cm x 42 cm (13.5” x 16.54”)
Image matrix size	2304 x 2800 pixels
A/D conversion	14 bits
Cable length	6 m

Collimator

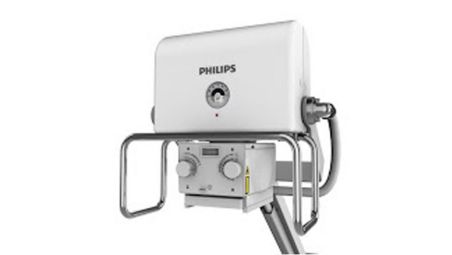

Collimator

Type	Manual, with LED light field indicator
Rotation	+/- 120O
Double laser line for 1m SID	Yes, Optional
Filters	1 mm AI +0.1 mm Cu/1 mm AI + 0.2 mm Cu/2 mm AI/0 mm AI
Filter select LED indication	Yes
Brightness of LED for FOV	<gt/>160 lux

Tube

Tube

Tube	Rotating anode
Anode material	Rhodium, Tungsten, Molybdenum
Nominal focal spot	Small focus: 0.8 Large focus: 1.3
Anode thermal capacity	80 kJ (107 kHU)

Generator

Generator

Type	High Frequency
Power	16 kW/32 kW
mAs range	0.1-110 mAs (12.5% steps)
kV range	40 – 125 kV (1kV steps)
mA range	50 – 160 mA/50-320 mA
Exposure times	0.001 - 1 s
Frequency	40 kHz
Small focus / Large focus	Small focus / small and large focus

Eleva Workspot

Eleva Workspot

Hard disk	500 GB
Image storage	Typically 4,000 images

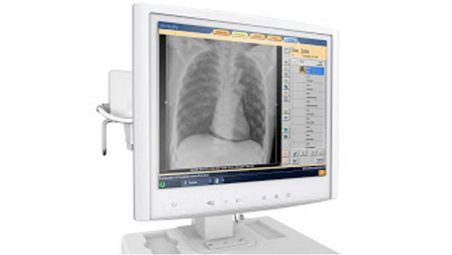

Monitor	19” LCD color touch screen monitor (1280 x 1024)
UNIQUE image processing	Yes
Battery capacity	4200 mA·h
Matrix depth	14 bit / pixel

Detector

Detector

Type	Digital tethered flat detector
Scintillator	High stability scintillator

Collimator

Collimator

Type	Manual, with LED light field indicator
Rotation	+/- 120O

Bekijk alle specificaties

Detector

Detector

Type	Digital tethered flat detector
Scintillator	High stability scintillator
Pixel size	150 µm
Detector size	35 cm x 43 cm (approx. 14” x 17”)
Active area	34.3 cm x 42 cm (13.5” x 16.54”)
Image matrix size	2304 x 2800 pixels
A/D conversion	14 bits
Cable length	6 m

Collimator

Collimator

Type	Manual, with LED light field indicator
Rotation	+/- 120O
Double laser line for 1m SID	Yes, Optional
Filters	1 mm AI +0.1 mm Cu/1 mm AI + 0.2 mm Cu/2 mm AI/0 mm AI
Filter select LED indication	Yes
Brightness of LED for FOV	<gt/>160 lux

Tube

Tube

Tube	Rotating anode
Anode material	Rhodium, Tungsten, Molybdenum
Nominal focal spot	Small focus: 0.8 Large focus: 1.3
Anode thermal capacity	80 kJ (107 kHU)

Generator

Generator

Type	High Frequency
Power	16 kW/32 kW
mAs range	0.1-110 mAs (12.5% steps)
kV range	40 – 125 kV (1kV steps)
mA range	50 – 160 mA/50-320 mA
Exposure times	0.001 - 1 s
Frequency	40 kHz
Small focus / Large focus	Small focus / small and large focus

Eleva Workspot

Eleva Workspot

Hard disk	500 GB
Image storage	Typically 4,000 images
Monitor	19” LCD color touch screen monitor (1280 x 1024)
UNIQUE image processing	Yes
Battery capacity	4200 mA·h
Matrix depth	14 bit / pixel
